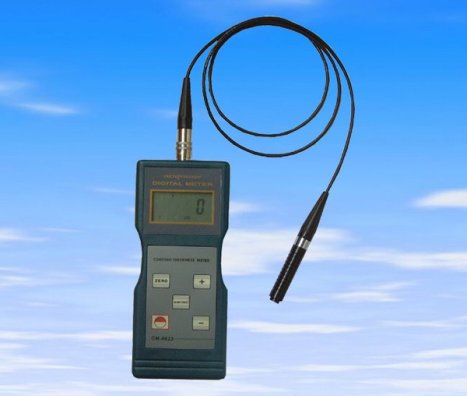

ET8823 Coating Thickness Gauge Meter, NF substrate

FEATURES

It meets the standard of ISO-2361. Suitable for the laboratory and for use in harsh field conditions.
The NF probes measure the thickness of non-magnetic metals. It is used on anodizing, varnish, paint, enamel, plastic coatings, powder, etc. applied to aluminum, brass, non-magnetic stainless steel, etc.
Used the exclusive Micro-computer LSI circuit any crystal time base to offer high accuracy measurement & fast measuring time.
Wide measuring range and high resolution.
Digital display gives exact reading with no guessing or errors.
The use of durable, long-lasting components, including a strong, light weight ABS-plastic housing assures maintenance free performance for many years. The housing has been carefully shaped to fit comfortably in either hand.

MEASURING PRINCIPLE: eddy current

SPECIFICATIONS

Display
4 digits, 10mm LCD

Range
0 – 1000um/0 – 40mil (The max. thickness may be up to 15,000um/600mil)

Resolution
0.1um (0 – 99.9um)
1 um (over 100um)

Accuracy
+/- 1 – 3%n or 2.5um (Whichever is the greater)

Power supply
4 x 1.5AA (UM-3) battery

Operating condition
Temp. 0 –50 deg.C, Humidity <80%

Size
161 x 69 x 32mm (6.3 x 2.7 x 1.2 inch)

Weight
About 260g (including batteries)

Accessory
Carrying case, Operating manual, NF probe, Calibration foils, Substrate (Aluminum)

USD 160 per set

---
