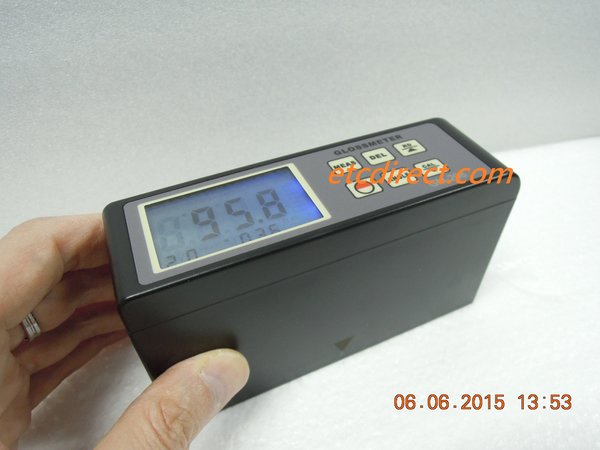

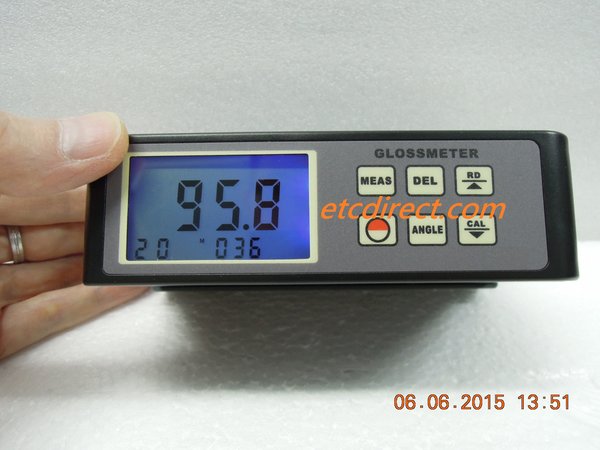

ETG268 Low Cost Gloss Meter, 20 / 60 / 85 degree



Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface ,measurement (chrome plating), Inspection of paint protection and waxing, Auto-body paint inspection,Surface inspection
of plastic moldings, Evaluation of detergents and washers,Checking masonry and washers, Checking building exteriors.

TECHNICAL SPECIFICATIONS

Display : 4 digits backlit LCD

Measuring geometry : 20/60/85 Degrees

Range: 0.1 to 200 gloss units

Accuracy:±1.0 gloss unit
( against reference standard )

Resolution: 0.1 gloss unit

Repeatability: ±0.5 GU(0 … 99.9)

Measuring area: mm ellipse

Data memorized: groups

Power supply: battery: 4×1.5VAAA

Dimensions: main unit:156 x67x28mm

Separate sensor: 58x28x108mm

Weight:about 305g ( including fitted batteries )

Working condition: Temperature range 0 – 40℃

Humidity up to 85%

USD 360 per set

---
