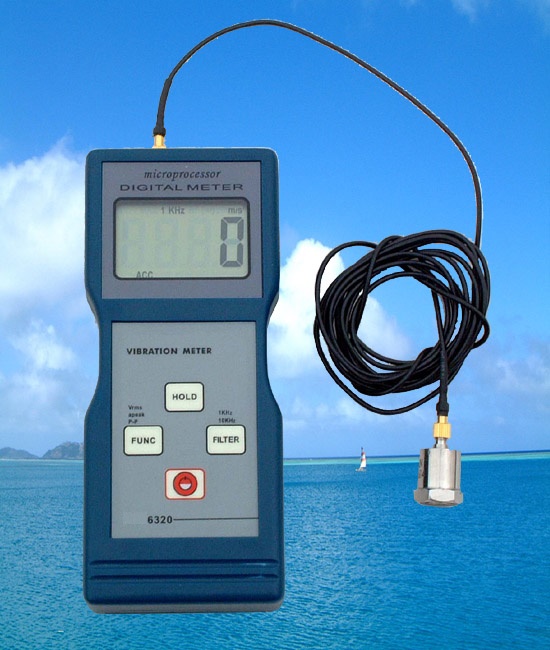

ET6320 Vibration Meter

Application: used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.
It is specifically designed for present measuring various mechanical vibration. So as to provide the data for the quality control, run time and equipment upkeep.
In use the high-performance acceleration meter, realize the repetitiveness and accurate measurement.
It has the function of testing axle bearing situation.

Specifications:

Acceleration p 0.1-200 m2/s (10Hz to 1KHz 10Hz to 10KHz )

Velocity : rms 0.1-200 mm/s (10Hz to 1KHz)

Displacement: p-p 0.001-2.0 mm (10Hz to 1KHz)

Accuracy: <5%

Auto power off

Max hold

Operating conditions:0 to +40℃(32℉-104℉),≤90%RH

Power supply: 4 x 1.5V AA battery

Battery indicator: low battery indicator

Dimensions : 160x68x32mm

weight: 181 g

USD 225 per set
